配電箱裝配流水線的研發

配電箱箱體成型機市場前景和研發背景

Market Prospect and R & D background of Fire Box Molding Machine

配電箱是我們?nèi)粘Ｉ钪谐Ｒ姷南涝O(shè)施，其作用為盛放配電箱，在各大商場，醫院，辦公樓等隨處可見他的身影，用途十分廣泛。

Fire box is a common fire fighting facility in our daily life, and its function is to hold fire fighting equipment. He can be seen everywhere in shopping malls, hospitals, office buildings and so on.

Fire box is a common fire fighting equipment in our life, widely used in office buildings, supermarkets and other large buildings, its use is to hold fire extinguishers, because placed in the bright place, so its appearance and quality requirements are relatively strict, and the traditional manual bending is very slow, and the quality of the products produced is uneven, serious hard products beautiful and overall coordination.

配電箱箱體成型機簡介

Brief introduction of Fire Box Molding Machine

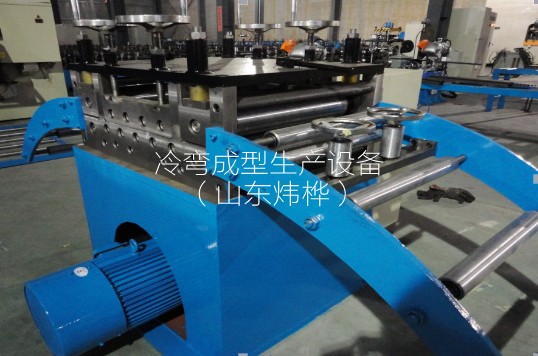

配電箱箱體成型機為煒樺冷彎公司的新一代產品，經過科研人員技術團隊的不斷摸索，把最繁瑣，最費人工，容易出現產品誤差的工序，全部集成到生產線上來完成，原本需要五六個人完成的工序現在只需要一人簡單操作，并且速度更快，品質更穩定，基本沒有不合格產品出現，極大程度上節省了人工成本和原料成本。為企業發展?fàn)幦×烁罄麧櫩臻g。

The fire box molding machine is a new generation of products of Weihua Cold bending Company. Through the continuous exploration of the scientific and technical team, the most tedious, labor-consuming and error-prone processes are all integrated into the production line. The process, which originally required five or six people to complete, now only needs one person to operate simply, and the speed is faster, the quality is more stable, and there are basically no unqualified products. The labor cost and raw material cost are saved to a great extent. For the development of enterprises to strive for greater profit space.

各行各業都在進行改革——就是用機器代替人工。全自動滅火器箱殼體生產設備、消防栓箱箱體生產設備、消防箱門框自動生產線。改變生產工藝就可以顛覆一個行業！ 我們改變了加工配電箱箱體傳統落后的生產工藝，改為四邊一塊板料加底板組成消防箱外殼。

All kinds of industries are undergoing reform-that is, replacing labor with machines. Automatic fire extinguisher box shell production equipment, fire hydrant box production equipment, fire box door frame automatic production line. Change the production process can subvert an industry! We have changed the traditional backward production technology of processing the box body of the fire box to form the shell of the fire box by adding a plate on four sides and a bottom plate.

山東煒樺研發的新型配電箱箱體成型設備，改變了傳統折彎方式，把由折彎機配合人工完成的部分變?yōu)槔鋸澇尚蜋C(jī)完成，性能穩定，品質如一，并且大小規格等均可隨意調節，改變規格方便，全部自動調節，操作方式簡單，只需一人簡單操作，生產速度可達每小時120個箱體。

The new fire box forming equipment developed by Wei Hua in Shandong Province has changed the traditional bending mode and changed the part completed by the bending machine with manual work into a cold bending molding machine. The performance is stable, the quality is one, and the size specification can be adjusted at will. It is convenient to change the specification, all automatically adjust, the operation mode is simple, only one person is simple to operate, and the production speed can reach 120 boxes per hour.

配電箱箱體成型機參數配置

Parameter configuration of Fire Box Molding Machine

占地面積：18500*1250*1325

Floor area: 18500 1250 325

機架結構：蜂窩式結構

Rack structure: honeycomb structure

傳動方式：齒輪傳動

Transmission mode: gear transmission

控制方式：PLC控制

Control mode: PLC control

驅動方式：變頻電機

Driving mode: variable frequency motor

液壓油型號：46號

Hydraulic oil model no. 46

齒輪油型號：16號

Gear oil model no. 16

主電機功率：7.5kw

Main motor power: 7.5kw

主電源電壓：380/415V

Main supply voltage: 380 to 415V

電機品牌：德國

Motor brand: Germany

送料電機：日本安川

Feeding motor: Yasukawa,
